Micro MOSFET II with Spring Cables up to M210 (50A)
JeffTron brand

Professionally made MOSFET for airsoft electric guns
The device increases the ROF (Rate of Fire) of the replica and the battery lasts longer than when used with standard wiring

Technical specifications:
- Pre-soldered cables allow for quicker and easier installation in the replica, the harness is long enough for all types of weapons. Just cut the cables to the required length and connect the connectors (INCLUDED in the package)
- Four high quality 1.5 qmm (AWG16) power cables covered with MPPE insulation and two 0.34QMM (AWG22) signal wires are pre-soldered to the devices
- Board covered with protective coating, protects the device from water
- Designed for springs up to M210 (equivalent for 150A single shot current or 50A burst fire for max. 30 seconds).
- Designed for standard batteries up to 17v (ni-xx 8.4 - 12v, lipol 7.4 - 14.8v)
- 6-wire connection
- Device dimensions 25 x 12 x 7 mm
- No power consumption in idle mode
- No spark on the switch contacts
- In Full-Auto mode, the piston stops in a random position thanks to the mechabox design
- For correct operation it is necessary to have a Cut Off lever, Selector Plate, Anti-Reversal, Trigger and Trigger Lock, as in a standard gearbox

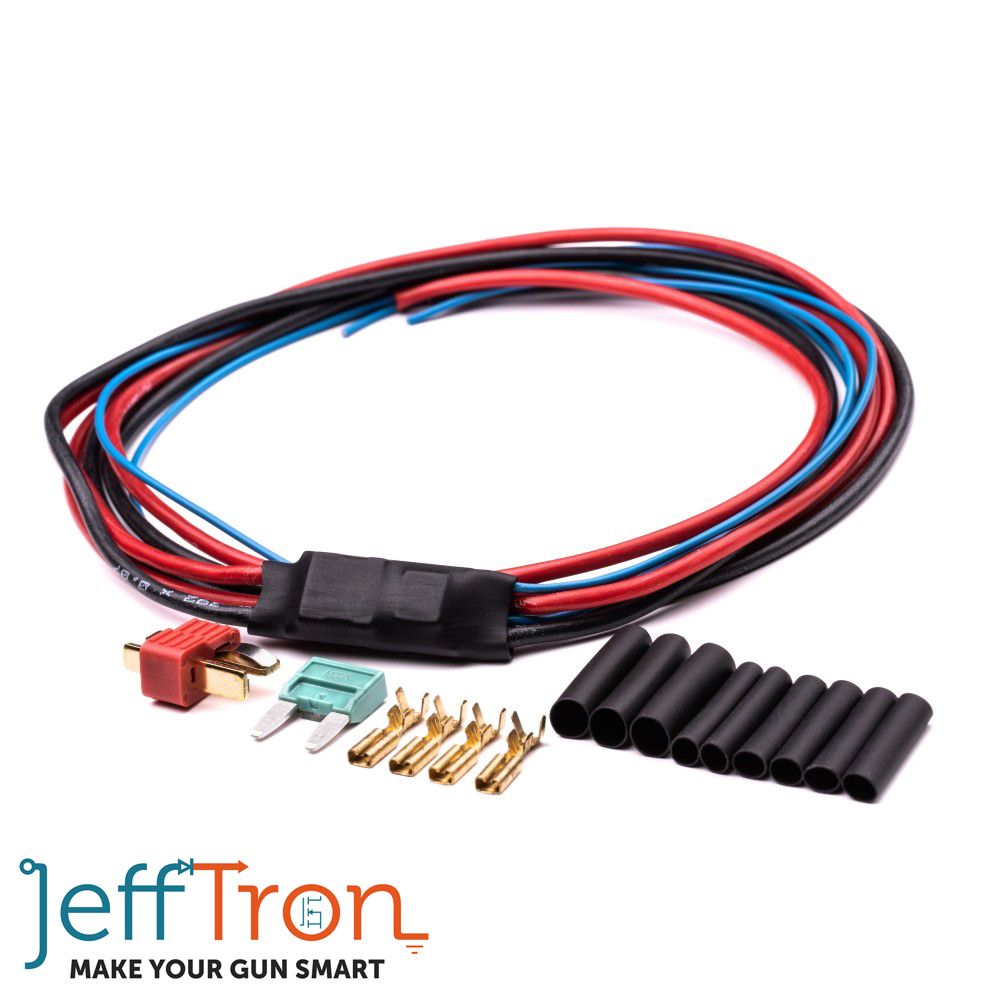

The Package Contains:
- Device with wiring
- Male Dean-T connector
- 30a mini fuse
- 4x 2.8mm female faston
- 6x black heat shrink tube 3,2mm - length 20mm
- 3x black heat shrink tube 4,8mm - length 20mm
- Installation manual in English

Warning: the installation of this device must be carried out by an expert, who may have to weld and disassemble parts of the airsoft replica. Never use the welding gun!

Instructions for the device: You can download the installation manual in English Here
