MOSFET V3 on Contact Group with Spring Cables up to M160 (25A)
JeffTron brand

Professionally made MOSFET for airsoft electric guns.
The device increases the ROF (Rate of Fire) of the replica and the battery lasts longer than when used with standard wiring.
It is fully integrated into the Gearbox Version 3 in place of the original trigger contacts, compatible with the Tokyo Marui standard.

Technical specifications:
- Mosfet made on SHS company trigger contacts
- Easy Installation inside Gearbox Version 3
- Pre-soldered cables allow for quicker and easier installation in the replica, the harness is long enough for all types of weapons. Just cut the cables to the required length and connect the connectors (INCLUDED in the package)
- 2 high quality 1.5 qmm (AWG16) black wires with MPPE insulation, 400mm length to the motor and 600mm to the battery, are pre-soldered on the devices. The 0.34 qmm blue wire (AWG24) with a length of 1000mm is used for the connection at any point of the red wire.
- Included in the package is a 1000mm 1.5 qmm (AWG16) red wire with MPPE insulation
- The harness is designed for battery housings in the Stock, but can also be used for front housings as long as it can run around the black battery wire on the board (Re-solder it)
- Board covered with protective coating, protects the device from water
- Designed for springs up to M160 (equivalent for 75A single shot current or 25A burst fire for max. 30 seconds).
- Designed for standard batteries up to 17v (ni-xx 8.4 - 12v, lipol 7.4 - 14.8v)
- No power consumption in idle mode
- No spark on the switch contacts
- In Full-Auto mode, the piston stops in a random position thanks to the mechabox design
- For correct operation it is necessary to have a functional Cut Off lever, Selector Plate, Reverse Latch, Trigger and Trigger Lock, as in a standard gearbox.

Instructions for the device: You can download the installation manual in English Here [pdf, 679,66 kb]

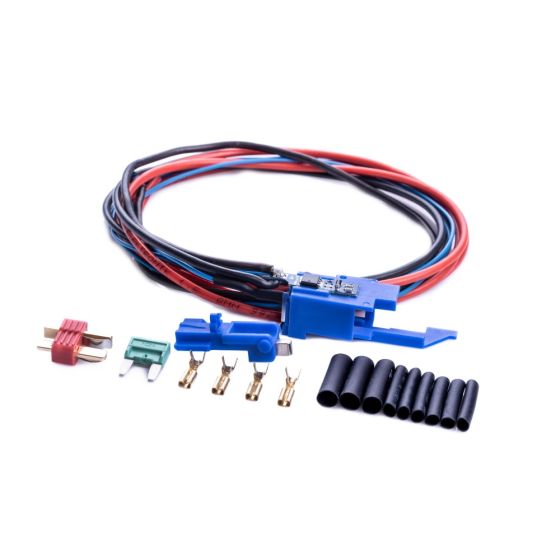

The Package Contains:
- Mosfet on Trigger contacts with wiring
- Trigger switch
- Male deant connector
- 30a mini fuse
- 4x 2.8mm female faston
- 6x black heat shrink tube 3,2mm - length 20mm
- 3x black heat shrink tube 4,8mm - length 20mm
- Installation manual in English

Warning: the installation of this device must be carried out by an expert, who may have to weld and disassemble parts of the airsoft replica. Never use the welding gun!
