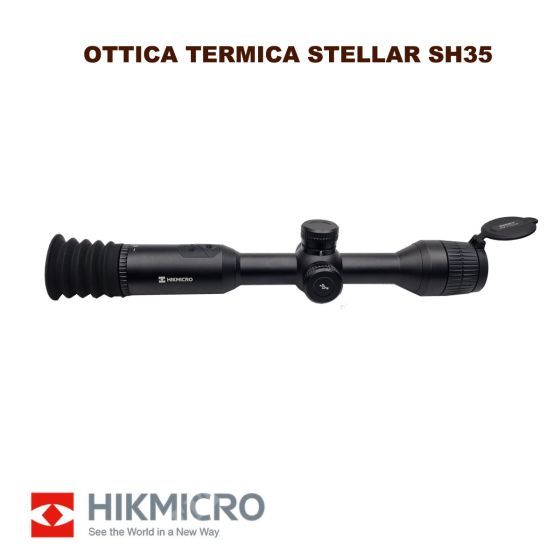

Thermal Scope HIKMICRO STELLAR SH35 8X 1800m
HIKMICRO BREND
Model THUNDER PRO SH35
Detection Range 1800 m
Thermal Scope HIKMICRO STELLAR SH35
HIKMICRO BREND
Model STELLAR SH35
Detection Range 900 m
The scope has a continuous recording function which, at the moment of the shot, allows you to automatically record a 14-second video that starts 7 seconds before and ends 7 seconds after the shot.
The calibration with the Freeze and Zoom functions allows for incredible shooting precision.
Traditional style design with standard 30mm mounting rings meets the needs of hunters who appreciate traditions.
With this mode you can calibrate the scope by marking the offset on the reticle after the first shot.
Five zeroing profiles are adjustable for different distances.
Two internal rechargeable lithium batteries + one external removable CR123A.
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Max. Resolution | 384 × 288 |
Frame rate | 50 Hz |
Pixel Interval | 12 μm |
Response Waveban | 8 μm to 14 μm |
NETD | <35 mK (@ 25 °C),F# = 1.0 |
Lens (Focal Length) | 35 mm |
Detection range | 1800 m |
Field of View | 7.53° × 5.65° |
Min. focusing distance | 15 m |
Aperture | F1.0 |
Magnification | 2.7X |
Image Display | |
Display | 1024 × 768, 0.39 inch, OLED |
Palettes | Black Hot, White Hot, Red Hot, Fusion |
Exit pupil | 5 mm |
Eye relief | 60 mm |
Diopter (range) | -5D to +3D |
FFC FLAT | Auto manual extremal correction |
System | |
Digital zoom | 1x, 2x, 4x, 8x |
Capture Snapshot | Yes |
Record video | On-board video recording |
Recoil-activatio recording | Yes |
Audio recording | Yes |
Standby mode | Yes |
PIP | Yes |
DPC | Yes |
Hotspot | Yes |
Uniformity correction | Auto manual,external correction |
Hot track | Yes |
Reticle | Yes |
Power Supply | |
Battery Type | Replaceable applicable type: CR123A, RCR123A |
Battery Operating Time | 15 h |
Battery Capacity Display | Yes |
Anti-reverse battery connection | Yes |
Overvoltage protection | Yes |
Type-C power supply | 5 VDC/2 A USB TYPE-C |
General | |
Work Temperature/Humidity | - 2ì30 °C to 55 °C (- 4 °F to 131 °F) |
Protection Level | IP67 |
Dimension | 470 mm × 78.1 mm × 75.9 mm |
Weight | 890 g without eyepiece and batteries |
