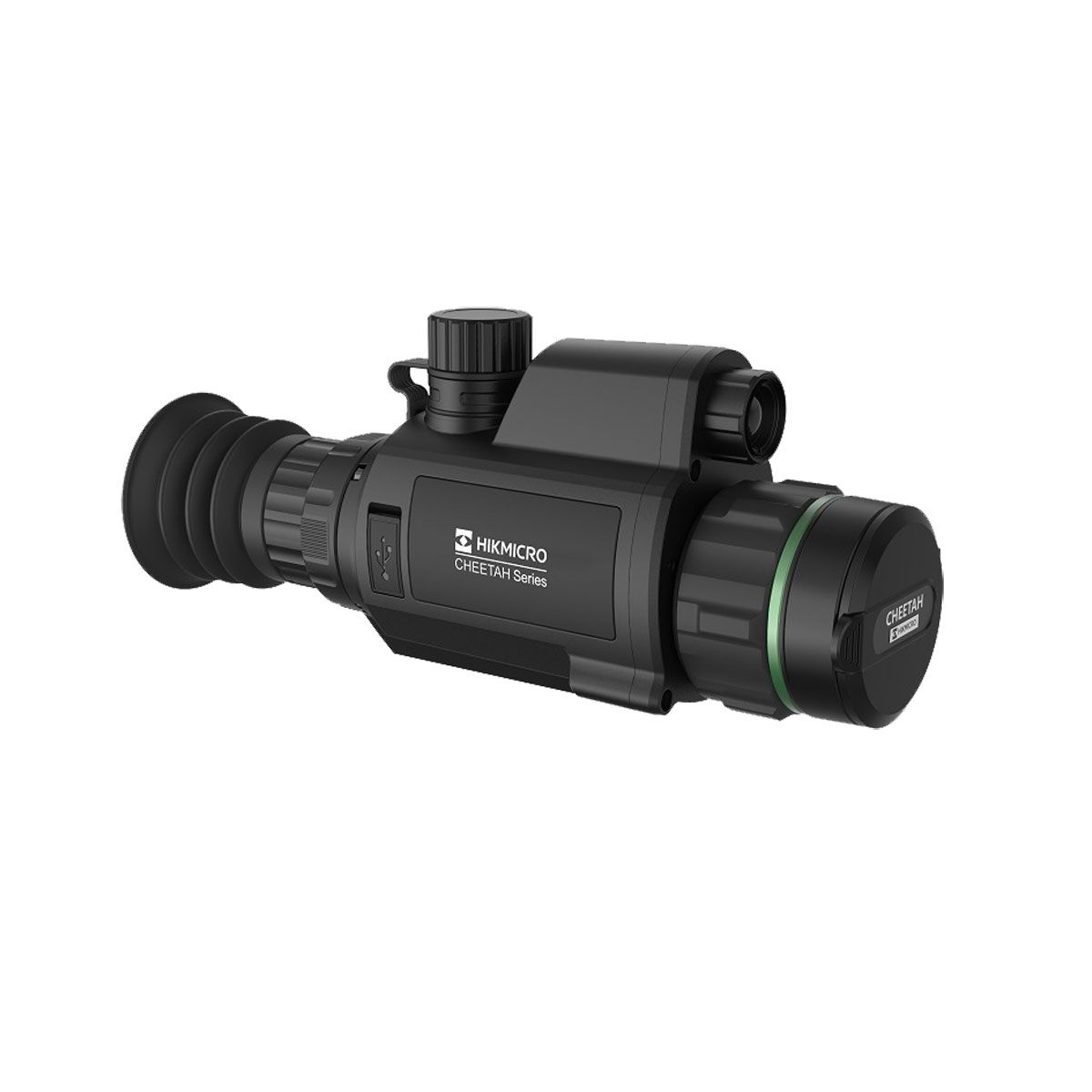

Digital night vision scope HIKMICRO CHEETAH
HIKMICRO BREND
Model CHEETAH C32F-S
Detection Range 400 m (with IR 850 nm ON)
CHEETAH C32F-S
Digital night vision scope HIKMICRO CHEETAH
HIKMICRO BREND
Model CHEETAH C32F-S
Detection Range 400m
This powerful day and night vision optic captures any object up to 400 meters in stunning detail thanks to the UHD resolution of 2560x1440 (3.6 MP).
Monocular or scope with eyepiece or clip-on with adapter.
CHEETAH was designed to be a perfect hunting companion weighing only 477 grams.
The built-in adjustable IR emitter allows you to use the device in total darkness.
The replaceable eyecup offers a quick and easy way to transform the clip-on into a monocle or scope.
The built-in laser rangefinder, with detection up to 1000m, allows you to determine the distance in various scenarios with great accuracy.
Day/Night/Auto/Defog modes allow you to use the Cheetah Optics in different light conditions.
Thanks to a special optical component it has a greater ability to detect IR information in fog, ensuring 24/7 observation.
MAIN | |
Max. resolution | 2560 x 1440 |
Lens (focal length) | 32 mm |
Field of view | 8.1° x 6.1° |
Min. focusing distance | 3 m |
Frame rate | 25 Hz |
Aperture | F1.2 |
Magnification | 2.7x |
Detection range | 400 m (with IR 850 nm ON) |
Magnification | 2.45 to 19.6 |
IMAGE DISPLAY | |
Display | 1920 x 1080 res. 0.49"" OLED |
Image mode | Day, Night, Auto, Defog |
Exit pupil | 6 mm |
Eye relief | 45 mm |
Diopter (range) | -5 D to 3 D |
SYSTEM | |
Digital zoom | 1x, 2x, 4x, 8x |
Capture snapshot | Yes |
Standby mode | Yes |
Recoil-activation recording | Yes |
Reticle | Yes |
Record video resolution | Yes |
Freeze zeroing | Yes |
Storage | Built-in eMMC (64 GB) |
PIP | Yes |
Audio recording | Yes |
Max. recoil | 750 g |
Hotspot | Yes |
POWER SUPPLY | |
Battery type | One Rechargeable Li-ion battery |
Battery operating time | 5.5 hours continuous running (@25°C, Hotspot, IR Emitter OFF) |
Overvoltage protection | Yes |
Type-C power supply | 5 VDC/2 A, USB Type-C interface3 Supports external power supply |
GENERAL | |
Working temperature | -30°C to 55°C (-22°F to 131°F) |
Dimension | 217 mm x 70 mm x 87.2 mm |
Weight | 465 g without eyepiece and batteries |
Protection Level | IP67 |
LASER RANGEFINDER | |
Safety class for laser | N/A |
Wave length | N/A |
Max. measuring range | N/A |
Measurement accuracy | N/A |
Min. measuring range | N/A |
Dimension 171 mm × 61 mm × 57 mm (6.23"" × 2.40"" × 2.2
Weight : 300g (0.64 lb)
ness. The monocular is mainly
applied to scenarios such as hunting, hiking, law enforcement, searching and rescuing, and
