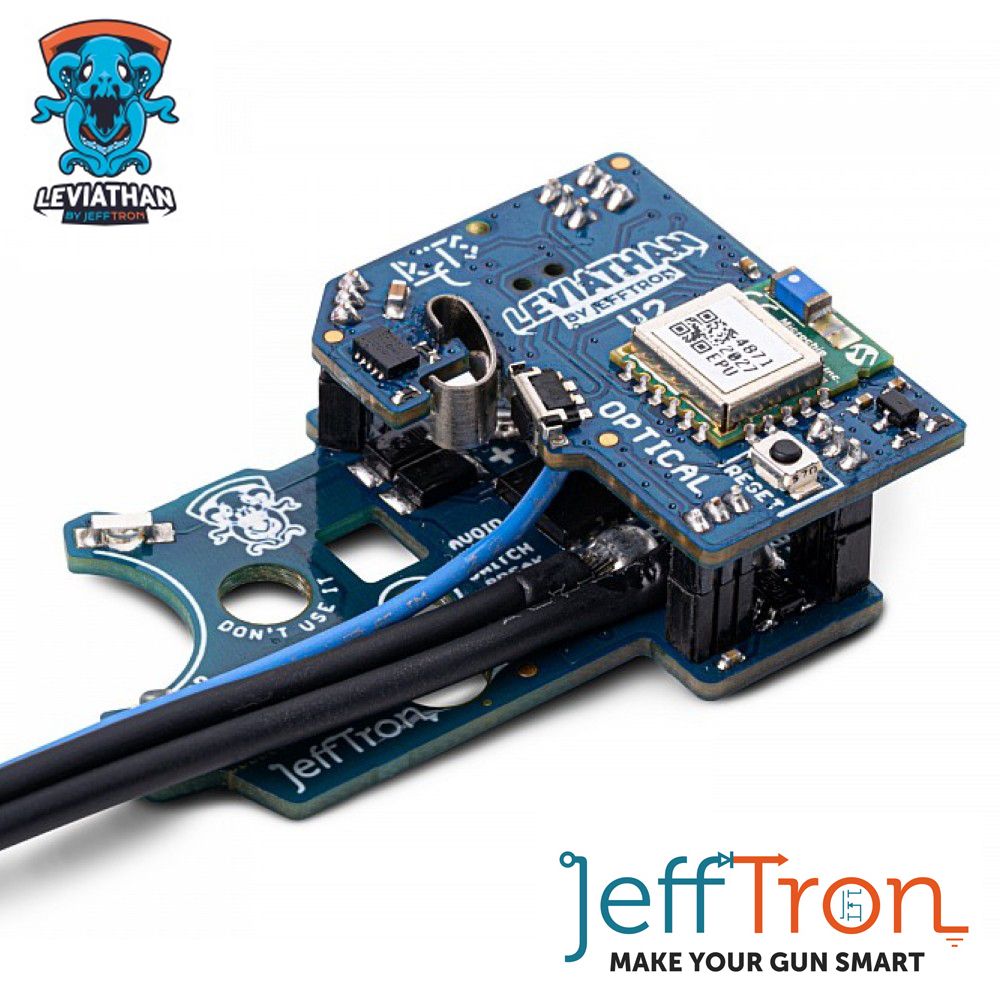

MOSFET Leviathan V2 Optical JeffTron Rear Cables

MOSFET Leviathan V2 Optical Rear Cables
JeffTron brand
New Version with Optical Sensors

Some Features:
- MOSFET controlled by a processor with wireless communication
- Allows you to add new shooting modes, ROF control, Pre-Armament, Active Braking, Low Battery Indication, Statistics and much more
- Controllable from the iOS and Android Smarthphone Application
- Replaces the original trigger contacts inside the Gearbox version 2
- INCLUDES 1 Black CNC Speed ​​trigger

Useful links:
Leviathan Mobile APP by JeffTron for iOS and Android Smartphones
Installation Manual for Leviathan - V2 in English [PDF, 23.6 mb]
Leviathan by JeffTron Q&A discussion forum on facebook

Safety information:
- Read the instructions carefully before installation to avoid damage.
- Short circuits or batteries not connected correctly cause immediate damage to the device which is not covered by warranty. it can also cause the battery to ignite or explode
- Disconnect the battery when you are not using the replica! Otherwise the battery will be completely discharged because the device continuously consumes some energy.
- Do not modify, do not repair, do not wet with any type of liquid, do not cause thermal shock to the device

The package includes:
- Leviathan Drop-In Electronic Module - V2 with Rear Wiring, Dean-T Connector, 40a mini fuse and faston connectors to the motor
- Black CNC Speed ​​trigger with screw for zero position adjustment
- Screw with washer for fixing the device in the gearbox
- Leviathan 40mm black sticker
- Foam to hold the device in place
- Instruction manual in English

Main functions:
- Adds new independent firing modes for each selector position (safe - semi - auto)
- Three adjustable bursts (2 to 20 shots)
- Firing speed can be reduced to 40%. adds pauses between shots to reduce rate of fire. It provides a quick trigger response even at a very low firing rate, just like in a real gun.
- Active Braking with adjustable strength (can be disabled)
- Pre-Armament function for instantaneous firing on semi-automatic fire
- Delay between shots adds time you can't fire to simulate weapon reload or recoil delay (0.1 to 4.0 seconds)
- The electronic fuse allows the detection of high currents to avoid damage if something does not work properly
- Low battery indication for 2s - 4s Li-Po and 3s - 4s Li-Fe
- The statistics screen shows the firing data with the cycle times, the motor energy consumption, the firing speed and the temperature of the MOSFET, allows you to make a perfect setting of the Gearbox.
- The app shows the current battery voltage value. the colored lines indicate the state of charge of the battery
- User can save multiple settings in profiles
- The application is constantly updated for bug fixes and the inclusion of new features
- There are three shot counters:
Total counter that indicates the total number of shots fired during the entire life of the device.
User counter that can be reset at any time by the user.
Power-up counter that is reset at each battery connection.
- There is an error log which records all errors that occurred during the entire life of the device.
- For greater security, the wireless connection can be disabled using the selector
- The device continuously monitors current, voltage and temperature to avoid damage in case of problems
- The motor vibrates and beeps as feedback to the user
- Programming settings are saved within the device and are not lost when the battery is disconnected or the connection with the smartphone is lost

Shooting Modes:
Independently set for each selector position (safe - semi - auto)
- Safe: no response to trigger pull
- Semi: fires a single shot with each pull of the trigger
- Semi / Burstx: A short pull of the trigger fires a single shot, the long press fires the burst x
- Binary Trigger: fires a single shot when the trigger is pulled and another single when released
- Burstx: fires a burst with each pull of the trigger
- Burstx + bursty: a short trigger pull fires the x burst, long press fires the y burst
- Burstx / Full: a short pull of the trigger fires the burst x, the long press fires full-auto
- Full: continuous firing from the pressure to the release of the trigger

Technical specifications:
- Easy installation inside gearbox version 2, compatible with Tokyo Marui standard
- In most cases no changes are required to either the replica or the Leviathan v2 device
- Uses an optical sensor actuated by the sector gear for perfect timing of semi and full-auto firing
- Optical sensor also for the firing selector
- The CNC trigger included in the package has a screw to move its zero position. Thanks to it, the shot can be done with a very short pressure of the trigger, this modification is called ""Hair Trigger""
- Real Feel Trigger System (RTFS)
- Thanks to its advanced electronics Leviathan - v2 can be used with any standard gearbox upgrade and rate of fire of the replica
- The harness allows for quick and easy installation and is long enough for all replica types with battery housing in the stock. No welding is needed.
- Power cables are high quality 1.5 qmm (awg16) with thin and strong mppe insulation and 0.34 qmm blue signal cable (awg24) with mppe insulation
- The external diameter of the power cables is only 2.06 mm and that of the blue wire is 1.24 mm
- The length of the cable between the Gearbox and the battery connector is 290 mm
- The card is covered with a protective coating that protects the device from water
- For the correct functioning of the pre-cocking it is necessary to have a functional anti-reversal in the gearbox
- Can be used with standard batteries up to 17v (ni-xx 8.4 - 12v, li-po 7.4 - 14.8v)
- The device increases the rate of fire and the batteries last longer than when used with basic wiring
- With Active Braking active the piston is not partially stretched, the spring is completely released, the mechanical parts are not under stress and the nozzle blocks most of the hop up (depends on the rof)
- In replicas with very high rate of fire the active braking solves multiple shots in semi-auto mode
- The braking effect is strong on high torque motors
- With Leviathan you will not need cut off, trigger, trigger contacts and trigger lock
