STRIKE EAGLE® optics 1-8x24 Reticle AR-BDC3 (MOA) Tube 30mm Vortex

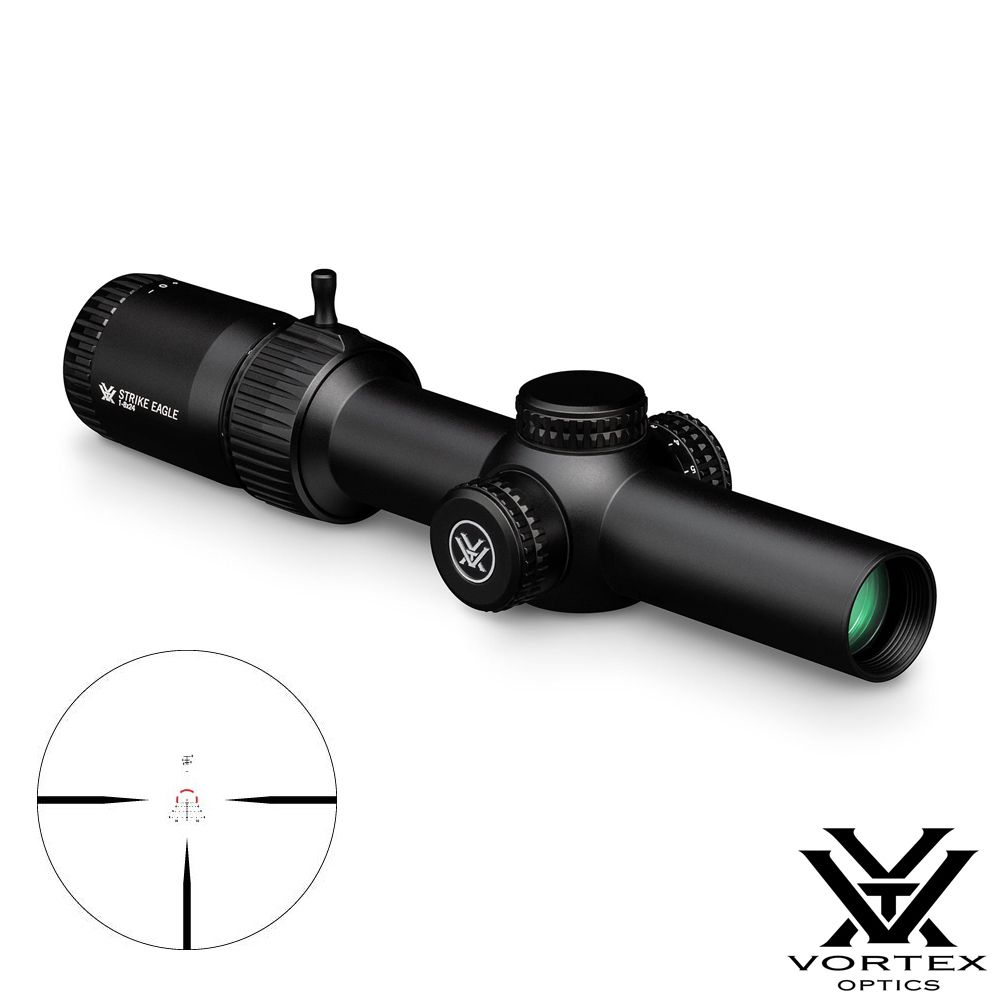

STRIKE EAGLE® 1-8x24 optic
AR-BDC3 reticle (MOA)
30mm tube
Vortex brand

Optimize the versatility and handling characteristics of your AR with the redesigned Strike Eagle.
A true 1x at the low end, the Strike Eagle zooms in to allow shooters to quickly engage near and far targets, and an AR-BDC3 reticle aids in quick shooting while providing 0-600 yard references and ranges. Plus, with a threaded release lever, you'll be on target even faster, shot after shot.

Included in the package:
Thread launch lever
Flip the caps
lens cloth
CR2032 battery

Data sheet:
Magnification: 1-8x
Objective lens diameter: 24mm
Eye Relief: 3.5 inches
Field of View: 109-14.4 feet at 100 yards
Tube size: 30mm
Turret style: low coverage
Adjustment graduation: 1/2 MOA
Travel per rotation: 44 MOA
Maximum elevation adjustment: 140 MOA
Maximum drift adjustment: 140 MOA
Parallax Setting: Fixed at 100 yds
Length: 10.0 inches
Weight: 17.6 oz
Download the parts diagram (PDF)
Download the reticle manual (PDF)
Product Manual Download (PDF)

OPTICAL FEATURES
Illuminated Reticle: Provides accurate aiming in low light conditions
Fully multilayer: Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle: The reticle scale maintains the same appearance of ideal size. The grating undervoltages listed used to estimate range, holdover, and wind drift correction are accurate at maximum magnification.
Glass Etched Reticle: Allows for intricate lattice design. Protected between two layers of glass for optimum durability and reliability.

CONSTRUCTION FEATURES
ArmorTek ®: The ultra hard and scratch resistant coating protects the external lenses from scratches, oil and dirt.
Shockproof: Rugged construction resists kickback and impact.
Waterproof - IPX7: Designed to meet IPX7 waterproof standards.
Anti-fog: Nitrogen gas purge prevents internal fogging over a wide range of temperatures.
Tube Size: 30mm diameter provides maximum internal adjustment and strength.
Matte Anodized Finish: Corrosion-resistant and wear-resistant anodizing provides a low-reflection matte surface and helps camouflage the shooter's position.
Aviation Aluminum: Constructed from a solid block of aircraft aluminum for strength and rigidity.
One-piece tube: Maximizes alignment for greater precision and optimal visual performance, as well as ensuring strength and waterproofing.

CONVENIENT FEATURES
Quick Focus Eyepiece: Allows quick and easy reticle focusing.
Launch Lever: The included launch lever can be installed for quick and easy magnification adjustments.

AR-BDC3 RETICLE
The illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of the common 5.56 loads of an AR-15. The 1 MOA center point provides precise aiming point while the surrounding 16,625 MOA broken circle brings the eye to the center faster for quick target acquisition and the BDC keeps you on target up to 650 yards.
