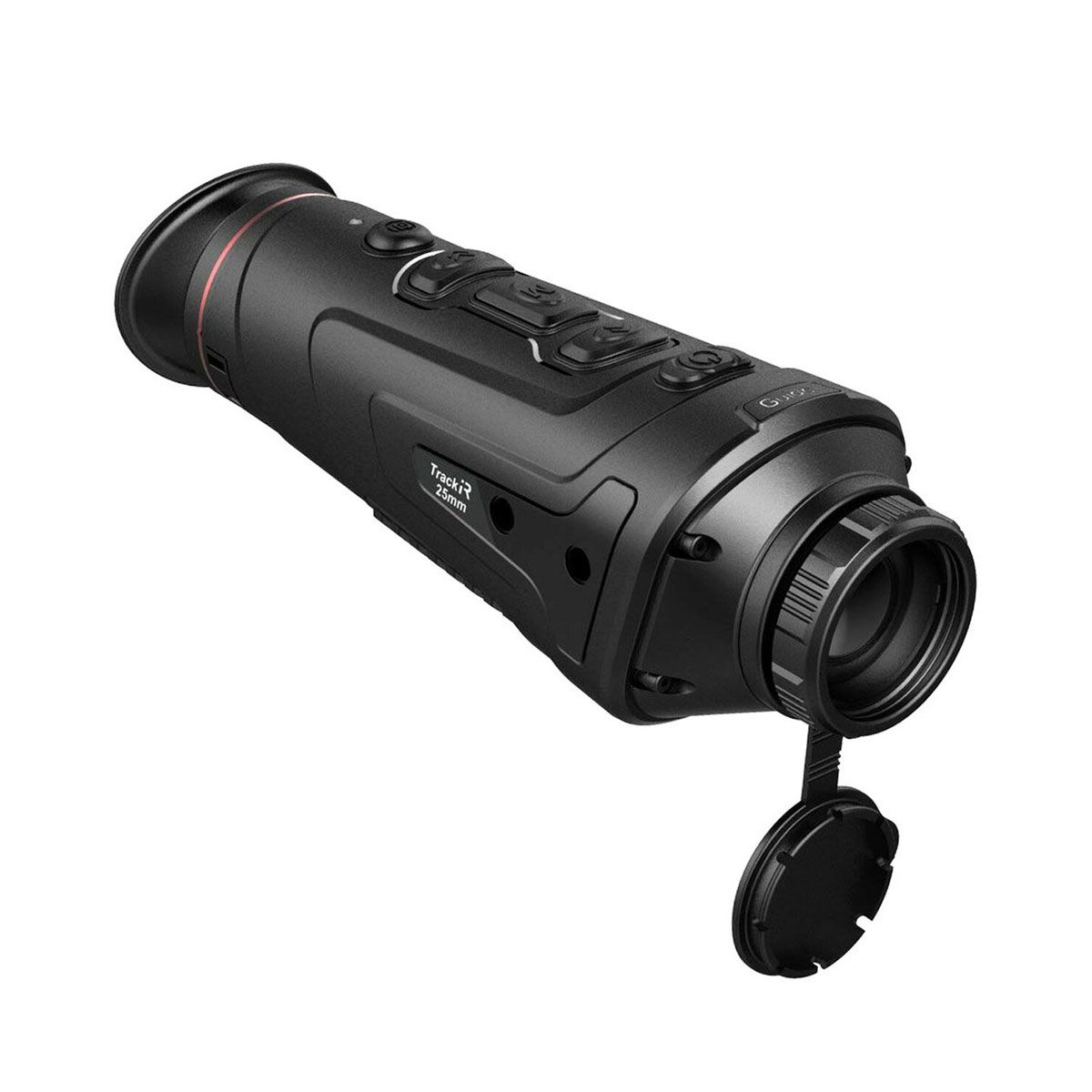

trackir 25mm guide sensmart
guide sensmart brend
model trackir 25mm
detection range 1700 m
trackir 25mm guide sensmart
guide sensmart brend
model trackir 25mm
detection range 1700 m
introduce
trackir series is guide’s new launched handheld thermal imaging monocular designed
for professional hunters. with up to 640 × 480 ir sensor and 1280x960 hd display, it
provides adaptable and excellent thermal imaging in any conditions. support smooth
zoom, built-in stadiametric rangefinder, image quality adjustment, picture-in-picture
functions. at a high frame rate of 50hz, trackir captures sharp thermal imaging
throughout dynamic and rapid motion in distance. it also supports connecting
accessories to realize more functions
features and benefit
1280×960 hd display for better comfort of viewing
o high resolution sensor ensures crisper image
o support smooth zoom (1x ~4x)
o build-in stadiametric rangefinder
o user-friendly ui with quick menu, easy to operate
o multiple color palettes for good vision in diverse environments
o rugged and adaptable, ip66, 1-meter drop test
o can connect external accessories such as laser rangefinder, lighting, mobile power supply and etc
infrared detecto | |
detector type | vox |
detector resolution and pitc | 400 × 300 17 μm |
spectral range | 8 to 14 μm |
netd | ≤50mk @ f1 25°c |
lens | |
focal length | 25 mm; f1.2 |
focus | manual |
field of view | 15.4° × 11.6° |
frame rat | 1.47 to 11.76 |
output frame frequency | 50 h |
zoom | |
optical zoom | 1.7x |
digital zoom | 1-4x |
visual effect | it's like viewing at a 22’‘ screen at 1 m |
power | |
battery type | 2 built-in 18650 batteries (6000ma |
battery life | ≥ 5 hours |
interface | |
usb | type c (usb 2.0 standard), supporting power supply and data acce |
video interface | micro hdm |
external expansion | external display |
mechanical interface | unc ¼ -20 (tripod mounting), picatinn |
display | |
display type | 0.4'' flcos |
resolution | 1280 × 960 |
eyepiece | monocular, exit pupil distance≥10 mm, diopter adjustment: -4 to+2 |
eyepiece zoom | 13.8x |
video outpu | digital video |
button | |
button functions | power / up / menu / down / photo / vi |
functions | |
smooth zoom | available |
screen brightness adjustment | 10 levels |
detector brightness adjustment | 10 levels |
detector contrast adjustment | 10 levels |
inage enhancement | available |
scene modes | enhanced, highlight and natura |
ultra power saving mod | available |
image capturin | available |
video recording | available |
wifi | transmission of real-time video via wifi for remote control in the 2.4g frequency band and within 15 meters |
color palettes | black hot, white hot, red hot, iron red, blue hot |
hot spot tracking | available |
working indicato | on/off |
charging indicator | automatic, shutter and scene compensatio |
rough ranging | available |
automatic shutdown | closed, 15, 30 or 60 mins |
lanutomatic slee | closed, 5, 10, or 15 mins |
language setting | chinese / english / russian / german / frenc |
system | |
time setting | available |
watermark settings | closed, setting of date or date and location |
pip | upper left, upper middle, upper right, close |
restore to default | available |
start up | 2 s |
memory capacity | 16 gb |
environmental | |
operating temperature rang | -10 °c to 50 °c |
storage temperature range | -30 °c to 60 °c |
humidity | 10 % to 95 % non-condensing |
shock | 30 g at 11 ms half sine pulse (as per iec60068-2-27) |
vibration | 10 hz - 150 hz - 10 hz 0.15 mm (as per iec60068-2-6) |
drop | 1 m |
encapsulation | ip66 |
certification | ip66, fcc, ce, rohs, eac, un38.3.3 |
dimension 192 mm × 65 mm × 71 mm
peso: 470 g (0.64 lb)
ness. the monocular is mainly
applied to scenarios such as hunting, hiking, law enforcement, searching and rescuing, and
